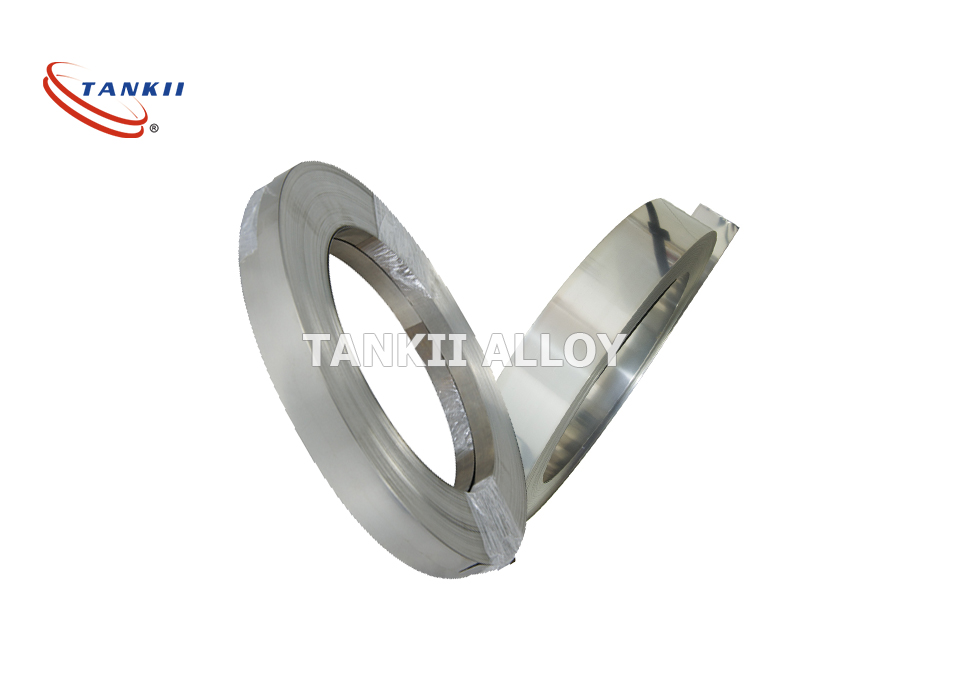

FeCrAl Resistance Heating Strip 1.0mm Width For Edge Wind Resistor

  • 1
  • 2
  • 3

Brand Name : TANKII

Model Number : Alloy 134

Certification : ISO9001 SGS

Place of Origin : Shanghai, China

MOQ : 100 KG

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Tons per month

Delivery Time : 7-20 days

Packaging Details : Wooned Case

Material : Fe-Cr-Al Alloy

Shape : Strip / Tape / wire

surface : Bright

Resistivity : 1.25

width : 1.0mm Min

Contact Now

Grade: Cr13Al4

1. Performance: High resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.

2. Usage: It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.

3. Diameter: 1.0-10.0mm
Other sizes are available upon your request.

Other FeCrAl Alloy: 1Cr15Al5, 0Cr21Al4, 0Cr21Al6, 0Cr23Al5, 0Cr25Al5, 0Cr21Al6Nb etc
Please email us for more detailed information.

Properties/Grade Cr13Al4
Main Chemical composition(%) Cr 12.0-15.0
Al 4.0-6.0
Fe Balance
Re opportune
Max. continuous service temp. of element 950
Resistivity at 20oC (μ Ω · m) 1.25+-0.08
Density (g/cm3) 7.4
Thermal conductivity(KJ/m· h· oC) 52.7
Coefficient of lines expansion(α × 10-6/oC) 15.4
Melting point (approx. )( oC) 1450
Elongation at rupture (%) ≥ 16
Micrographic structure Ferrite
Magnetic properties magnetic

EFFECT OF COLD WORK

Cold working Cr13Al4 leads to a rapid increase in yield and tensile strength and an accompanying loss of ductility. With 10% cold reduction,

elongation falls below 10% and yield strength approaches 100 ksi. (690 MPa).

The work hardening rate of Cr13Al4 is below that of carbon steel and austenitic stainless alloys. The n-Value or work hardening coefficient

(measured between 10% strain and the ultimate strength) typically falls in the range of 0.145 - 0.170.
