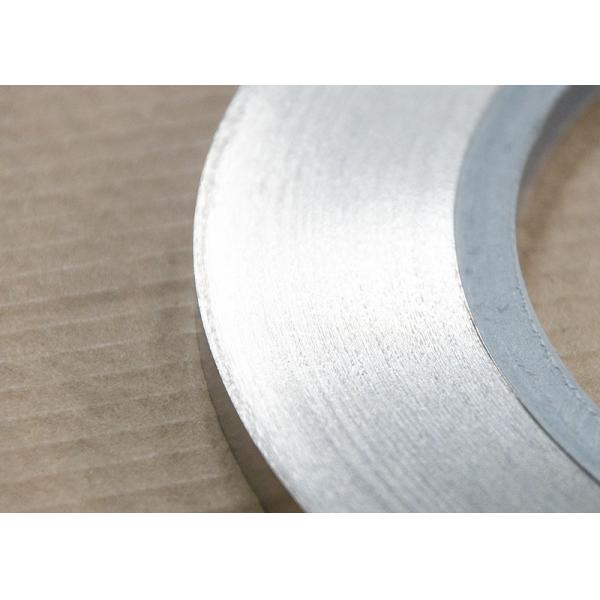

kanthal D alloy 815 Fecral Alloy Strip 0Cr23Al5
Fecral alloy is high resistance and electrical heating alloy.Fecral alloy can reach process temperatures of 2192 to 2282 F,correspong to a resistance temperature of 2372 F.
1) Alloy grades:
OCr21Al4, OCr21Al6, OCr25Al5, OCr23Al5, 1Cr13Al4, OCr21Al6Nb, Cr15Ni60, Cr20Ni80, Cr30Ni70, Cr20Ni30 etc.
We are the greatest professional manufacturers of resistance heating alloys in China, specializing in Ferro-Chrome Alloys (Ferritic Alloys), Nickel-Chrome Alloys (Nichrome alloys), Copper Nickel Alloys (Constantan Alloys)
In the form of wire, ribbon/strip:
Round Wire: Dia 0.04mm-8.0mm
Ribbon/strip: Thickness: 0.04mm-0.75mm
Width: 0.08mm-6.0mm
2) Product Specifications:
Ferro-Chrome Alloys (Ferritic Alloys):
OCr21AL4, OCr21AL6, OCr25AL5, OCr23AL5, 1Cr13AL4, OCr21AL6Nb, OCr27AL7Mo2.
Nickel-Chrome Alloys (Ni-Cu Alloys):
Cr20Ni80, Cr15Ni60, Cr30Ni70, Cr20Ni30
Constantan Alloys (Cu-Ni Alloys):
CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi44, Manganin.
3) High quality assured:
Our works has a good command of advanced technological process in the respect of smelting, rolling, drawing and heat treatment up to finished products, together with the chemical analysis department, the physical testing department and the quality control department, we operate an all-round monitoring of our products from raw materials to final products.
4) Usage: Resistance heating elements; Material in metallurgy; Household appliances; Mechanical manufacturing and other industries.
5)We can also supply other products by processing on your order: Stranded wire, twisted wire, coiled wire, wave-shaped wires and different kinds of standard or non-standard electrical heating element.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD
Max Continuous Service Temperature:
Resisivity 20'C
Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property: | 1300'C
1.35+/-0.06ohm mm2/m
7.25g/cm3
60.2 KJ/m@h@'C
15.0×10-6/'C (20'C~1000'C)
1500'C
Min 12%
Ferrite
magnetic |
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | | | | | | |
| 0.06 | 0.025 | 0.020 | 0.50 | ≤0.6 | 20.5-23.5 | ≤0.60 | 4.2-5.3 | Balance | - |
