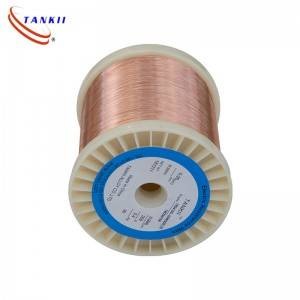

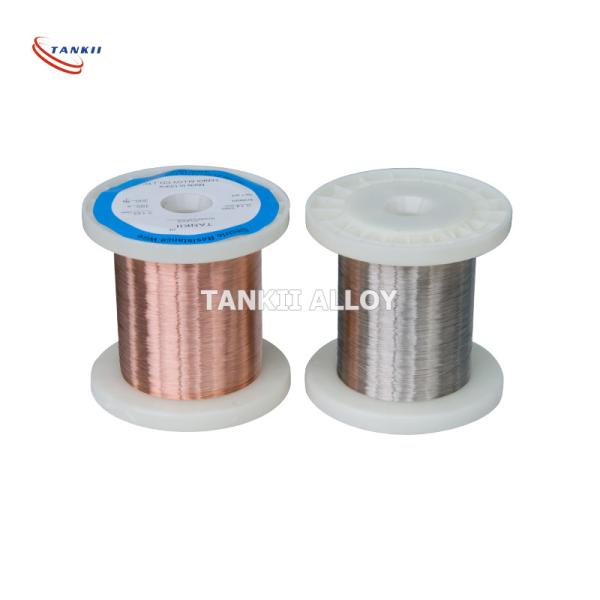

Automobile Shunt Cuni 15 Copper Nickel Wire Bright Surface
Copper nickel alloy,which has low electric resistance,good heat-resistant and corrosion-resistant, easy to be processed and lead welded.It is used to make the key components in the thermal overload relay,low resistance thermal circuit breaker, and the electrical appliances.It is also an important material for electrical heating cable.It's similar as s type cupronickel.
Product Description
Copper Nickel (CuNi) alloys are medium to low resistance materials typically used in applications with maximum operating temperatures up to 400°C (750°F).
With low temperature coefficients of electrical resistance, resistance, and thus performance, is consistent regardless of temperature. Copper Nickel alloys mechanically boast good ductility, are easily soldered and welded, as well as have outstanding corrosion resistance. These alloys are typically used in high current applications requiring a high level of precision.
Copper-base heat resistance alloy wire resistivity is low, has good corrosion resistance, welding property and machinable property , suitable for in thermal overload relay, a low-voltage circuit breakers, and other low- voltage electrical appliances and household appliances and other electrical appliances manufacturing heating element, and is an important material in production of heating cable.
| Code | Resistivity | Ma.Working Temper | Temp.Coeffi. Of Resistance | EMF Against Copper (0~100℃) | Chemical Composition (%) | Mechanical,Properties |
| Mn | Ni | Cu | Tensile Strength (N/mm2) | Elongation % (Less than) |
| Diameter＜=1.0mm | Diameter＞=1.0mm |
| NC003 | CuNi1 | 0.03 | 200 | ＜100 | -8 | - | 1 | Rest | 210 | 18 | 25 |
| NC005 | CuNi2 | 0.05 | 200 | ＜120 | -12 | - | 2 | Rest | 220 | 18 | 25 |
| NC010 | CuNi6 | 0.10 | 220 | ＜60 | -18 | - | 6 | Rest | 250 | 18 | 25 |
| NC012 | CuNi8 | 0.12 | 250 | ＜57 | -22 | - | 8 | Rest | 270 | 18 | 25 |
| NC015 | CuNi10 | 0.15 | 250 | ＜50 | -25 | - | 10 | Rest | 290 | 20 | 25 |
| NC020 | CuNi14 | 0.20 | 250 | ＜38 | -28 | 0.3 | 14.2 | Rest | 310 | 20 | 25 |
| NC025 | CuNi19 | 0.25 | 300 | ＜25 | -32 | 0.5 | 19 | Rest | 340 | 20 | 25 |
| NC030 | CuNi23 | 0.30 | 300 | ＜16 | -34 | 0.5 | 23 | Rest | 350 | 20 | 25 |
| NC035 | CuNi30 | 0.35 | 300 | ＜10 | -37 | 1.0 | 30 | Rest | 400 | 20 | 25 |
| NC040 | CuNi34 | 0.40 | 350 | 0 | -39 | 1.0 | 34 | Rest | 400 | 20 | 25 |
| NC050 | CuNi44 | 0.50 | 400 | ＜-6 | -43 | 1.0 | 34 | Rest | 420 | 20 | 25 |
| Alloy | DN-Trade Name | Material-No. | UNS-No. | ASTM Specification | DIN Specification |
| CuNi1 | CuNi1 | | | | |
| CuNi2 | CuNi2 | 2.0802 | C70200 | ASTM B267 | DIN 17471 |
| CuNi6 | CuNi6 | 2.0807 | C70500 | ASTM B267 | DIN 17471 |
| CuNi10 | CuNi10 | 2.0811 | C70700 | ASTM B267 | DIN 17471 |
| CuNi10Fe1Mn | CuNi10Fe1Mn | (2.0872) / (CW352H) | C70600 | ASTM B151 | |
| CuNi15 | CuNi15 | | | | |
| CuNi23Mn | CuNi23Mn | 2.0881 | C71100 | ASTM B267 | DIN 17471 |
| CuNi30Mn | CuNi30Mn | 2.0890 | | | |
| CuNi30Mn1Fe | CuNi30Mn1Fe | (2.0882) / (CW354H) | C71500 | ASTM B151 | |
| CuNi44Mn1 | Vernicon | 2.0842 | | | DIN 17471 |
294:Common Name:
Alloy294, Cuprothal294, Nico, MWS-294, Cupron, Copel, Alloy45, Cu-Ni102, Cu-Ni44, Cuprothal, Cupron, Copel, Neutrology, Advance, Konstantan
A30:Common Name:
Alloy 30, MWS-30, Cuprothal 5, Cu-Ni 23, Alloy 260, Cuprothal 30 HAI-30, Cu-Ni2, Alloy 230, Nickel Alloy 30
A90: Common Name:
Alloy 95, 90 Alloy, MWS-90, Cu-Ni 10, Cuprothal 15, Cu-Ni 10, Alloy 320 Alloy 90, Alloy 290, #95 Alloy, Cuprothal 90,HAI-90,Alloy 260,Nickel Alloy 90
A180: Common Name:
Alloy 180, 180 Alloy, MWS-180, Cuprothal 30, Midohm, Cu-Ni 23, Nickel Alloy 180
