Karma 6J22 Nicr Alloy Resistance Wire For Electrical Heating Elements

Name: Karma 6J22 Nicr Alloy Resistance Wire For Electrical Heating Elements
Brand: TANKII
Price: 10 USD

Wholesale Karma 6J22 Nicr Alloy Resistance Wire For Electrical Heating Elements from china suppliers

Brand Name : TANKII

Model Number : karma

Certification : JIS,GB,DIN,BS,ASTM,AISI,CTI

Place of Origin : Shanghai,China

MOQ : 100KG

Price : $10~$25/KG

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 600T per moth

Delivery Time : 30days

Packaging Details : on spool,paper box,wooden case/pallet,in coil

Port : Shanghai,China

Brand : TANKII

Ni : BAL

max continuous operating temperature(℃) : 300

resistivity(Ω/cmf,20℃) : 1.33

resisitivity(μΩ/m,60℉) : 800

density(g/cm³) : 8.1

thermal conductivity(KJ/m·h·℃) : 46.0

linear expansion coefficient(x10﹣6/℃)20-1000℃ : -

tensile strength(N/m㎡) : 1400

melting point (℃) : 180

hardness(Hv) : 780

Elongation(%) : 10-20

Micrographic structure : austenite

Magnetic property : non

fast life(h/℃) : -

grade : NiCr alloy

application : aviation,electronics,industrial,medical,chemical

type : Nickel Chrome wire

ultimate strength( ≧mpa) : as standard

surface : bright

shape : wire

Material : nickel chrome

condition : hard/soft/half hard

color : bright

feature : good form stability

MOQ : 100kg

Contact Now

NiCrAlFe alloy karma 6J22 resistance heating wire used in electrical heating elements

1. Karma alloy

Karma alloy is made up of copper, nickel, Aluminum and Iron as the main components. The resistivity is 2~3 times higher than MENTONG. It has lower temperature coefficient of resistance(TCR), lower thermal EMF versus copper, good permanence of resistance for a long period of time and strong anti-oxidation. Its working temperature range is wider than MENTONG (-60~300℃). It is suitable for making fine precision resistance elements and strain.

2. Karma size

Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm

3. Chemical Content(%)

Grade	C	Si	Mn	P	S	Ni	Al	Fe	Cr
Karma	≤0.04	≤0.20	0.5~1.05	≤0.010	≤0.010	Bal.	2.7~3.2	2.0~3.0	19.0~21.5

Physical Properties

Grade	Density(g/cm3)	EMF vs Pt(0-100℃)μv/℃	Max using Temp (℃)	Volume resistivity(μΩ.m)	PPM value (×10-6/℃)
Karma	8.1	≤2.5	≤300	1.33±8%(20℃)	≤±30(20℃)

Port	Shanghai,China	fast life(h/℃)	-
Brand	tankii	grade	NiCr alloy
Ni	bal	application	heating element and resistor
max continuous operating temperature(℃)	300	powder or not	not powder
resistivity(Ω/cmf,20℃)	1.33	ltimate strength( ≧mpa)	as standard
resisitivity(μΩ/m,60℉)	800	type	Nickel Chrome strip
density(g/cm³)	8.1	surface	bright
thermal conductivity(KJ/m·h·℃)	46	shape	strip
linear expansion coefficient(x10﹣6/℃)20-1000℃	-	Material	nickel chrome
melting point (℃)	1400	condition	bright
hardness(Hv)	180	color	silvery white
Elongation(%)	10-20	density	8.1 g/cm3
Micrographic structure	austenite	feature	good form stability
Magnetic property	non	MOQ	100kg

4. Distinctive features of Karma resistance wire

1) Starting with Nickel Chromium electric heat wire Class 1, we replaced some of the Ni with Al and other elements, and thus achieved a precision resistance material with improved resistance temperature coefficient and heat electromotive force against copper. With the addition of Al, we have succeeded in making volume resistivity 1.2 times greater than Nickel Chromium electric heat wire Class 1 and the tensile strength 1.3 times greater.

2) The secondary temperature coefficient β of Karmalloy wire KMW is very small, - 0.03 × 106/ K2, and the resistance temperature curve turns out to be almost a straight line within a wide emperature range.

Therefore, the temperature coefficient is set to be the average temperature coefficient between23 ~ 53 °C, but 1 × 10-6/K, the average temperature coefficient between 0 ~ 100 °C, also may be adopted for

the temperature coefficient.

3) Electromotive force against copper between 1 ~ 100 °C is also small, below + 2 μV/K, and exhibits

excellent stability over a period of many years.

4) If this is to be used as a precision resistance material, low temperature heat treatment is required

to eliminate processing distortions just as in the case of Manganin wire CMW.

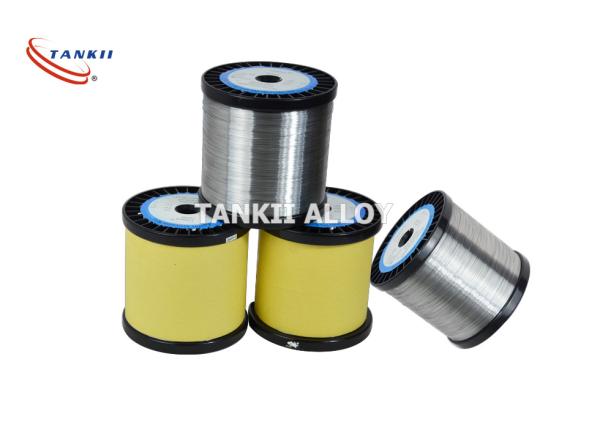

Karma 6J22 Nicr Alloy Resistance Wire For Electrical Heating Elements Images
