Extension Insulated Thermocouple Cable Solid Shape For Temperature Measurement

Brand Name : Tankii

Model Number : Thermocouple cable

Certification : ISO 9001

Place of Origin : China

MOQ : 500 m

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 150000m/month

Delivery Time : 5-30days

Packaging Details : 5000m/spool,2000m/spool

Name : Type K/T extension cable

Shape : solid

Color : red

Type : K,J,E,T

Package : coil

Temperature : 200°C 400°C 800°C 1000°C

Insulation : PTFE,GLASSFIBER

Material : NiAl-NiCr

Contact Now

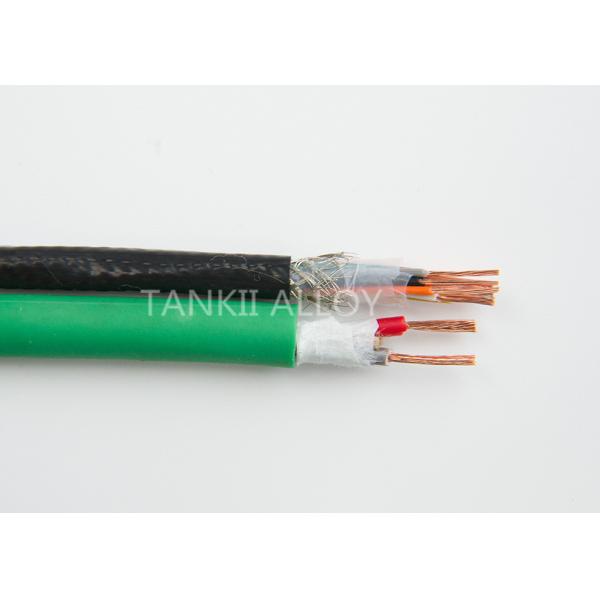

Type K J T thermocouple extension cable Insulated PTFE / Fiber Glass / PVC / PFA Cable 24 Awg 26AWG

NiCr-NiSi /NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.

Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.

Grade: Extension Grade or Thermocuple Grade
temperature range, deg. c -50... +400
type of coductor: K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
number of conductors: 1,2,3,4,6
Conductor type Strand or Solid
section area of each core, mm2 (Conductor Size AWG) 20, 24, 30, 32,36,40
material of insulation: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
material of jacket: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
shielding material: SSB mean Stainless Steel Braid (CUB mean Tinned Copper Braid)
color: ANSI, IEC, etc
quantity and lenght of coil, m(ft) 10*100m, 5*200m, 2*500m, 1*1000m, 3*1000ft, 1*2000ft,

Extension Insulated Thermocouple Cable Solid Shape For Temperature MeasurementExtension Insulated Thermocouple Cable Solid Shape For Temperature MeasurementExtension Insulated Thermocouple Cable Solid Shape For Temperature Measurement
