19*0.16mm 24AWG Stranded Wire N Type Thermocouple Wire With IEC Class I
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
19*0.16mm 24AWG Stranded Wire N Type Thermocouple Wire With IEC Class I
Type N Thermocouple (Nicrosil / Nisil): The Type N shares the same accuracy and temperature limits as the Type K. The type N is slightly more expensive. The type N has better repeatability between 572F to 932F (300C to 500C) compared to the type K.
Type N Temperature Range:
- Maximum continuous operating temperature: up to 2,300F (1,260C)
- Short term use: 2,336F (1,280C)
- Thermocouple grade wire, -454 to 2300F (-270 to 1,260C)
- Extension wire, 32 to 392F (0 to 200C)
Type N Accuracy (whichever is greater): - Standard: +/- 2.2C or +/- .75%
- Special Limits of Error: +/- 1.1C or 0.4%
Consideration for bare wire type E thermocouple applications:
- The type N holds up better to oxidation at high temperatures when compared to the type K.
Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields,
such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Our products conform to the standards of IEC584 -1and IEC-2.
19*0.16mm 24AWG Stranded Wire N Type Thermocouple Wire With IEC Class I
Thermocouple strips, thermocouple connectors are available.
Application Range of thermocouple wire:
1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation
19*0.16mm 24AWG Stranded Wire N Type Thermocouple Wire With IEC Class I
N Type Thermocouple Stranded Wire's 19/0.16mm 200 ℃ and 350℃ in Stock 66kg
| Type | Tensile Strength | Elongation | EMF |
| | | | (vs Platinum)(mV) |
| | N/mm² | % | 100℃ | 200℃ | 400℃ |
| NNX | 625 | 25 | 0.969 | 1.951 | / |
| NPX | 692 | 26.7 | 1.800 | 3.968 | / |
| NN | 710 | 27 | 0.987 | 1.989 | 4.066 |
| NP | 615 | 30 | 1.789 | 3.947 | 8.894 |
Application:N type thermocouple

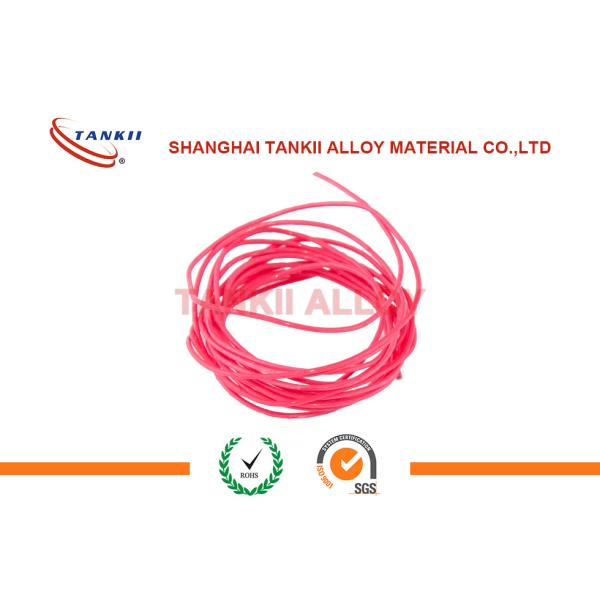

N type extension cable:
Delivery and Packing of thermocouple wire:

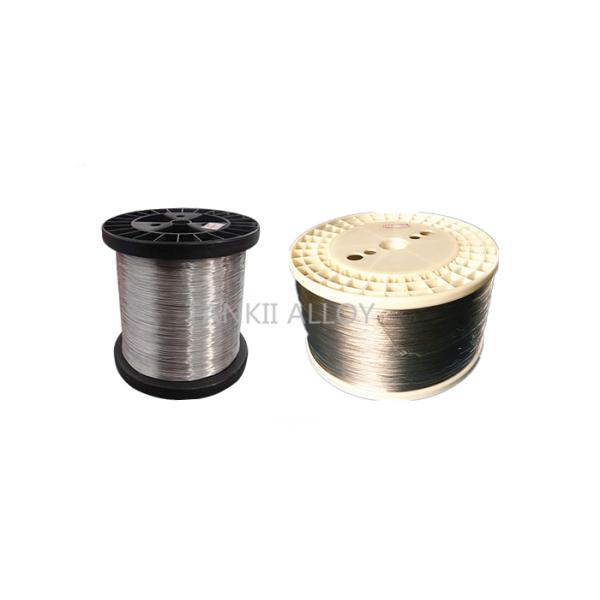

1. Packaging Details : 3900~5000m per roll with plastic film wrapped and carton package.
2. Leading time : within 3 days
3. Delivery: By express / air / sea
Welcome to call me or email to me for more information on N type thermocouple stranded wire 19/0.16mm.
