Brand Name : Tankii
Model Number : H63
Certification : ISO9001:2015
Place of Origin : Shanghai, China
MOQ : 50kg
Price : Negotiated price
Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability : 200+TON+MONTH
Delivery Time : 25-30 DAYS
Packaging Details : Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements
Size : 0.1mm-0.5mm
Cu % : 62-65
Shape : Round/ Flat/ Ribbon
Sample : Available
0.1mm-0.5mm H63/ H65 Brass Wire/ Flat Wire for Wire Ring/ Loop
USAGE
Used in a lot of deep-drawability parts, such as springs, and machine parts, zipper, etc.
THE MAIN CHARACTERISTICS
With excellent machinability, cold plasticity, hot plasticity, free cutting and resistance to corrosion, it is easy to joint and braze.
Temper
M, Y1, Y2, Y
Production Range
Thickness: 0.6mm - 2.0mm
Width: 3mm - 10mm
Specification
Chemical Composition
Alloy Grade | Cu | Pb | Fe (max) | Zn | Impurity Total |
H70 | 68.5 - 71.5% | 0.03% | 0.1% | Remain | 0.3% |
H68 | 67.0 - 70.0% | 0.03% | 0.1% | Remain | 0.3% |
H65 | 63.0 - 68.5% | 0.09% | 0.07% | Remain | 0.45% |
H63 | 62.0 - 65.0% | 0.08% | 0.15% | Remain | 0.5% |
H62 | 60.5 - 63.5% | 0.08% | 0.15% | Remain | 0.5% |
SWG | BWG | BG | AWG | |||||
8 | 0.16 | 4.046 | 0.165 | 4.191 | 0.157 | 3.988 | 0.1285 | 3.264 |
9 | 0.144 | 3.658 | 0.148 | 3.759 | 0.1398 | 3.551 | 0.1144 | 2.906 |
10 | 0.128 | 3.215 | 0.134 | 3.404 | 0.125 | 3.175 | 0.1019 | 2.588 |
11 | 0.116 | 2.946 | 0.12 | 3.048 | 0.1113 | 2.827 | 0.0907 | 2.305 |
12 | 0.104 | 2.642 | 0.109 | 2.769 | 0.0991 | 2.517 | 0.0808 | 2.053 |
13 | 0.092 | 2.337 | 0.095 | 2.413 | 0.0882 | 2.24 | 0.072 | 1.828 |
14 | 0.08 | 2.032 | 0.083 | 2.108 | 0.0785 | 1.994 | 0.0641 | 1.628 |
15 | 0.072 | 1.829 | 0.072 | 1.829 | 0.0699 | 1.775 | 0.0571 | 1.45 |
16 | 0.064 | 1.626 | 0.065 | 1.651 | 0.0625 | 1.588 | 0.0508 | 1.291 |
17 | 0.056 | 1.422 | 0.058 | 1.473 | 0.0556 | 1.412 | 0.0453 | 1.15 |
18 | 0.048 | 1.219 | 0.049 | 1.245 | 0.0495 | 1.257 | 0.0403 | 1.024 |
19 | 0.04 | 1.016 | 0.042 | 1.067 | 0.044 | 1.118 | 0.0359 | 0.912 |
20 | 0.036 | 0.914 | 0.035 | 0.839 | 0.0392 | 0.996 | 0.032 | 0.812 |
21 | 0.032 | 0.813 | 0.032 | 0.831 | 0.349 | 0.887 | 0.0285 | 0.723 |
22 | 0.028 | 0.711 | 0.028 | 0.711 | 0.03125 | 0.749 | 0.02535 | 0.644 |
23 | 0.024 | 0.61 | 0.025 | 0.635 | 0.02782 | 0.707 | 0.02256 | 0.573 |
24 | 0.022 | 0.559 | 0.022 | 0.559 | 0.02476 | 0.629 | 0.02011 | 0.511 |
25 | 0.02 | 0.508 | 0.02 | 0.508 | 0.02204 | 0.56 | 0.01791 | 0.455 |
26 | 0.018 | 0.457 | 0.018 | 0.457 | 0.01961 | 0.498 | 0.01594 | 0.405 |
27 | 0.0164 | 0.417 | 0.016 | 0.406 | 0.01745 | 0.443 | 0.0142 | 0.361 |
28 | 0.0148 | 0.376 | 0.014 | 0.356 | 0.01562 | 0.397 | 0.01264 | 0.321 |
29 | 0.0136 | 0.345 | 0.013 | 0.33 | 0.0139 | 0.353 | 0.01126 | 0.286 |
30 | 0.0124 | 0.315 | 0.012 | 0.305 | 0.0123 | 0.312 | 0.01003 | 0.255 |
31 | 0.0116 | 0.295 | 0.01 | 0.254 | 0.011 | 0.27 | 0.00893 | 0.227 |
32 | 0.0108 | 0.274 | 0.009 | 0.229 | 0.0098 | 0.249 | 0.00795 | 0.202 |
33 | 0.01 | 0.254 | 0.008 | 0.203 | 0.0087 | 0.221 | 0.00708 | 0.18 |
34 | 0.0092 | 0.234 | 0.007 | 0.178 | 0.0077 | 0.196 | 0.0063 | 0.16 |
35 | 0.0084 | 0.213 | 0.005 | 0.127 | 0.0069 | 0.175 | 0.00561 | 0.143 |
36 | 0.0076 | 0.193 | 0.004 | 0.102 | 0.0061 | 0.155 | 0.005 | 0.127 |
![]() |

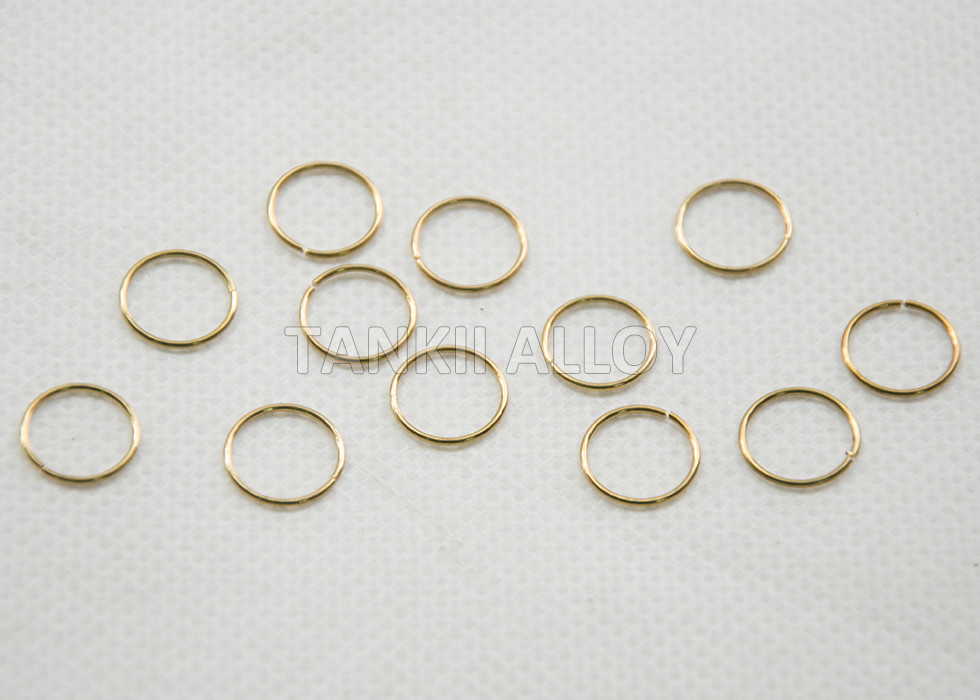

0.1mm - 0.5mm H63 / H65 Flat Brass Wire Customized Length For Wire Ring / Loop Images |
