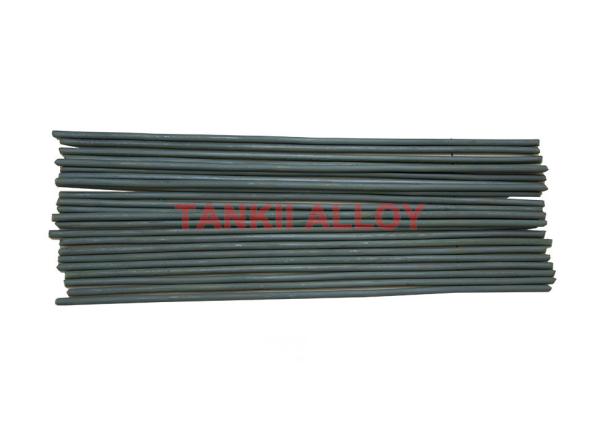

Chromel Alumel Thermocouple Rod 6mm With 1M Legth Used For Plug's Solid Pin
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
Chromel Alumel Thermocouple Rod 6mm With 1M Legth Used For Plug's Solid Pin
Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields,
such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Our products conform to the standards of IEC584 -1and IEC-2.
Thermocouple strips, thermocouple connectors are available.
Application Range of thermocouple wire:
1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation
Chromel Alumel Thermocouple Rod 6mm With 1M Legth Used For Plug's Solid Pin
Thermocouple Type and Temperature Range
| Thermocouple type and index | Measurement Range ℃ |
| Type | Index |
| PtRh30-PtRh6 | B | 600~1700 |
| PtRh13-Pt | R | 0~1600 |
| PtRh10-Pt | S | 0~1600 |
| NiCr-NiSi | K | -200~1300 |
| NiCr-CuNi (constantan) | E | -200~900 |
| Fe-CuNi (constantan) | J | -40~750 |
| Cu-CuNi (constantan) | T | -200~350 |
| NiCrSi-NiSi | N | -200~1300 |
The allowable grade and Tolerance are obtained at 0℃
| Thermocouple Type | Grade | Temperature range ℃ | Allowable Tolerance /℃ |
| Type B | Ⅱ | 600~1700 | ±0.25% t |
| Ⅲ | 600~800 | ±4 |
| 800~1700 | ±0.5%t |
| Type R(S) | Ⅰ | 0~1100 | ±1 |
| 1100~1600 | ±[1+(t－1100) ×0.3％] |
| Ⅱ | 0~600 | ±1.5 |
| 600~1600 | ±0.25% t |
| Type K and Type N | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t |
| Ⅲ | -200~40 | ±2.5℃ or ±1.5%t |
| Type E | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t |
| Ⅲ | -200~40 | ±2.5℃ or ±1.5%t |
| Type J | Ⅰ | -40~750 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~750 | ±2.5℃ or ±0.75%t |
| Type T | Ⅰ | -40~350 | ±0.5℃ or ±0.4%t |
| Ⅱ | -40~350 | ±1.0℃ or ±0.75%t |
| Ⅲ | -200~40 | ±1.0℃ or ±1.5%t |
Application:
Solid pin for male connector
Delivery and Packing of thermocouple wire:
1. Packaging Details : 500m/1000m per roll with plastic film wrapped and carton package.
2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.
3. Delivery: By express, air, sea as per thermocouple wire qty
Welcome to call me or email to me for more information on thermocouple wire.
