200 Degrees PTFE Insulated Thermocouple Cable Type K 2*0.2mm 500m Roll
The thermocouple cable can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.
Besides thermocouple Mineral insulated cable ( MI cable ) , thermocouple enamelled wire, thermocouple ribbon wire, thermocouple rods can be Custom made according to your request.
200 degrees cable Yellow Color green color PTFE insulated K type thermocouple cable 2*0.2mm 500M roll
Application of thermocouple:
• Heating – Gas burners for ovens
• Cooling – Freezers
• Engine protection – Temperatures and surface temperatures
• High temperature control – Iron casting
Different color codes can be supplied as per the request of the customers.
200 degrees cable Yellow Color green color PTFE insulated K type thermocouple cable 2*0.2mm 500M roll
Detailed Description on thermocouple cable
| Thermocouple Code | Comp. Type | Comp. Wire Name | Positive | Negative |
| Name | Code | Name | Code |
| S | SC | copper-constantan 0.6 | copper | SPC | constantan 0.6 | SNC |
| R | RC | copper-constantan 0.6 | copper | RPC | constantan 0.6 | RNC |
| K | KCA | Iron-constantan22 | Iron | KPCA | constantan22 | KNCA |
| K | KCB | copper-constantan 40 | copper | KPCB | constantan 40 | KNCB |
| K | KX | Chromel10-NiSi3 | Chromel10 | KPX | NiSi3 | KNX |
| N | NC | Iron-constantan 18 | Iron | NPC | constantan 18 | NNC |
| N | NX | NiCr14Si-NiSi4Mg | NiCr14Si | NPX | NiSi4Mg | NNX |
| E | EX | NiCr10-Constantan45 | NiCr10 | EPX | Constantan45 | ENX |
| J | JX | Iron-constantan 45 | Iron | JPX | constantan 45 | JNX |
| T | TX | copper-constantan 45 | copper | TPX | constantan 45 | TNX |
| |
| The color of Insulation and Sheath |
| Type | Insulation Color | Sheath Color |
| Positive | Negative | G | H |
| / | S | / | S |
| SC/RC | RED | GREEN | BLACK | GRAY | BLACK | YELLOW |
| KCA | RED | BLUE | BLACK | GRAY | BLACK | YELLOW |
| KCB | RED | BLUE | BLACK | GRAY | BLACK | YELLOW |
| KX | RED | BLACK | BLACK | GRAY | BLACK | YELLOW |
| NC | RED | GRAY | BLACK | GRAY | BLACK | YELLOW |
| NX | RED | GRAY | BLACK | GRAY | BLACK | YELLOW |
| EX | RED | BROWN | BLACK | GRAY | BLACK | YELLOW |
| JX | RED | PURPLE | BLACK | GRAY | BLACK | YELLOW |
| TX | RED | WHITE | BLACK | GRAY | BLACK | YELLOW |
| Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign |
Properties of insulation material
| Material Type | Continuous Operating Temp. / ℃ | Abrasion Resistance | Chemical Resistance | Moisture Resistance | Solvent Resistance | Flame Resistance |
| PE | 80 | Good | Excellent | Excellent | Excellent | Poor |
| PVC | 105 | Very Good | Very Good | Good | Fair | Excellent |
| TPE | 125 | Excellent | Poor | Good | Good | Excellent |
| SILICONE | 200 | Good | Good | Excellent | Excellent | Excellent |
| FEP | 200 | Excellent | Excellent | Excellent | Excellent | Excellent |
| PFA | 260 | Excellent | Excellent | Excellent | Excellent | Excellent |
| PTFE | 260 | Good | Excellent | Excellent | Excellent | Excellent |
| B-GLASS FIBER | 260 | Good | Good | Fair | Good | Good |
| G-GLASS FIBER | 510 | Poor | Good | Good | Excellent | Excellent |
| Q-GLASS FIBER | 704 | Fair | Good | Good | Excellent | Excellent |
| VITREOUS SILICA FIBER | 1100 | Good | Good | Excellent | Excellent | Excellent |
| MINERAL INSULATION* | 1100 | Excellent | Excellent | Good | Excellent | Excellent |

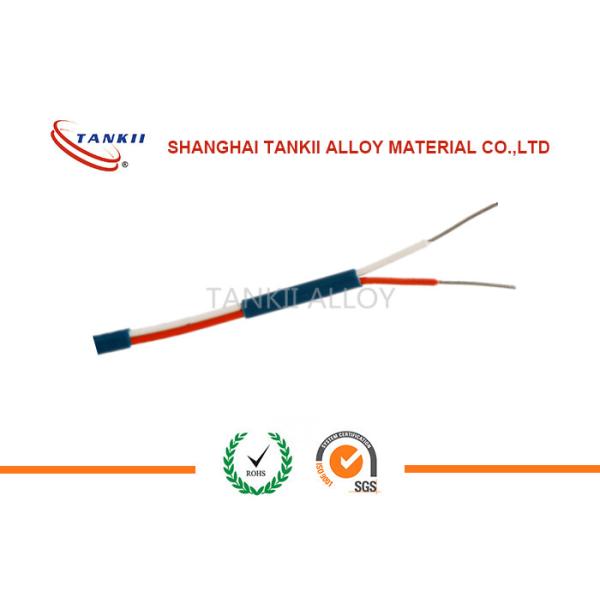

Thermocouple cable: tefon insulated 2*0.5mm
200 degrees cable Yellow Color green color PTFE insulated K type thermocouple cable 2*0.2mm 500M roll
Thermocouple cable Delivery and Package:
1. Standard Export package for the cable
2. Delivery: By express/ air/ sea ,
3. Leading time: 5-7 days after getting the payment or deposit
About us
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, thermocouple extension wire, thermocouple connectors, pure nickel and other precision alloy materials in the form of wire, ribbon wire, strip rods etc.
Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers
Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business.
Welcome to call me or email to me for more information on thermocouple wire or cable.
