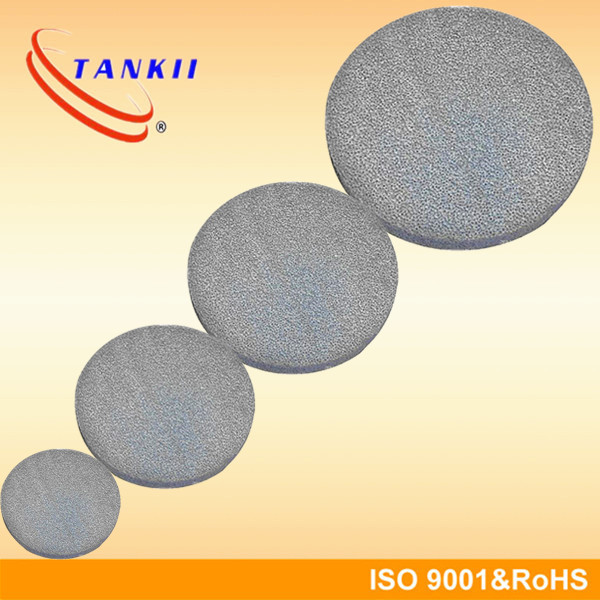

NICKEL FOAM (Ni)
Foam Nickel is a low density permeable material that has a very high porosity with typically 75-95% of the volume consisting of void spaces. Nickel Foam has a wide variety of applications in heat exchangers, energy absorption, flow diffusion, lightweight optics and is used as a filter material for gas and liquid.
Tankii supplies high quality nickel foam for rechargeable battery applications. Our plates have proven to be excellent electrode substrates for Ni-Cd and Ni-H rechargeable batteries and hydrogen storage units.
Nickel Foam for Battery Cathode Substrate (1000mm length x 300mm width x 1.6mm thickness)
Specifications:
Pecifications
Ni Foam product is composed by pure Nickel.
Thickness: 0.3-20mm
Density: 280g/m2~4000g/m2
PPI: 15~120
Width:50~960mm
Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness. Usefulness: (Various shapes can be produced)
1. Used as the base plate of positive electrode in Ni-MH / Ni-Cd battery.
2. Filtration materials of air / oil / smoke etc.
3. Porous electrode in Galvano-Chemistry Engineering.
4. Elimination of heat.
5. Amortization materials.
6. Noise-Absorbing and Vibration-Absorbing materials.
7. Electromagnetic shielding materials.
8. Catalyst carrier.
9. Precious metal recovery.
| SPECIFICATION |
| ITEM | CONTINUOUS NICKEL FOAM | THICK NICKEL FOAM |
| THICKNESS | (0.3~2.5)±0.05mm | (2.6~12)±0.05mm |
| PPI | 90~120 | 20~80 |
| SURFACE DENSITY | (280~1800)±30g/M2 | (400~3000)±30g/M2 |
| TENSILE STRENGTH | (VERTICAL)≥130n/CM2 (HORIZONTAL)≥100n/CM2 | |
| ELONGATION | (VERTICAL)≥5% (HORIZONTAL)≥12% | |
| POROSITY | ≥96% | ≥96% |
| WIDTH | (50~960)±0.5mm | (50~960)±0.5mm |
| SPLICE FREQUENCY | 200m≤4 junction | largest length 1000mm |
| RATIO RESISTANCE | ≤5X10-6 | ≤5X10-6 |
| item name | nickel plate |
| Standard | ASTM B162 |
| Material | NUS N02201 (ASTM B 162) same as N4 (GB/T 2054).
NUS N02200 (ASTM B 162) same as N6 (GB/T 2054). |
| type | plate sheet |
| Specification | Length 50-2000mm width 50-1200mm
thickness 0.5-50mm |
| Packing | Export wooden case |
| MOQ | 10pcs |
| Lead time | Within 7~10 work days after deposit |
| Payment | T/T, Western Union,Money Gram, paypal , Trade Assurance |
| use | electric apparatus and chemical machinery
Recording media, Graphic display, Glass coating, Solar Photovoltaic Application. |
| Loading port | Shanghai, qingdao, Shenzhen |
chemical composition
| Material | Ni+Co | Fe | C | Mn | Si | Cu | S |
| Ni200 | >99.5 | 0.4 | 0.15 | 0.35 | 0.35 | 0.25 | 0.01 |
| Ni201 | >99.9 | 0.4 | 0.02 | 0.35 | 0.32 | 0.25 | 0.01 |
