White Thermocouple Cable Type J / Thermocouple Wire Type K PVC Insulated For Freezers

Name: White Thermocouple Cable Type J Thermocouple Wire Type K PVC Insulated For Freezers
Brand: Tankii
Price: 1 USD

Wholesale White Thermocouple Cable Type J / Thermocouple Wire Type K PVC Insulated For Freezers from china suppliers

Brand Name : Tankii

Model Number : Type K

Certification : ISO 9001

Place of Origin : China

MOQ : 500 m

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 200000 m / month

Delivery Time : 5-30 days

Packaging Details : coil

Type : k

MATERIAL : Nickel

COLOR : WHITE

use : oxidizing or inert atmospheres

Contact Now

High temperature thermocouple cable FEP/PVC insulated
NiCr-NiSi (Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.

Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:

(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.

Detailed Parameter

Chemical Composition
Conductor Name	Polarity	Code	Nominal Chemical Composition /%
Conductor Name	Polarity	Code	Ni	Cr	Si
Ni-Cr	Positive	KP	90	10	--
Ni- Si	Negative	KN	97	--	3

Working Temperature
Diameter/mm	Long time Working temperature /ºC	Short period Working temperature /ºC
0.3	700	800
0.5	800	900
0.8,1.0	900	1000
1.2,1.6	1000	1100
2.0,2.5	1100	1200
3.2	1200	1300

Application:
Heating - Gas burners for ovens
Cooling - Freezers
Engine protection - Temperatures and surface temperatures
High temperature control - Iron casting

White Thermocouple Cable Type J / Thermocouple Wire Type K PVC Insulated For Freezers

Product Tags:

high temperature thermocouple cable

thermocouple cable k type

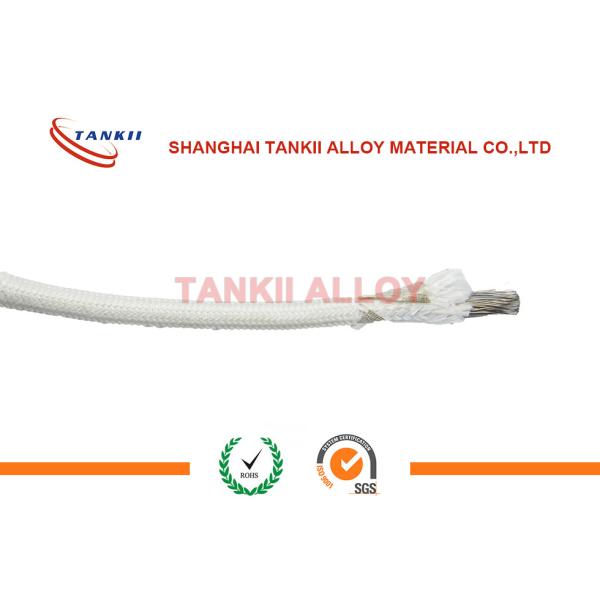

White Thermocouple Cable Type J / Thermocouple Wire Type K PVC Insulated For Freezers Images
